河南日科电子（郑州）为伊顿授权代理，现货供应伊顿UPS电源Eaton Ellipse ECO (500-1600VA)不间断电源，以下为产品详细介绍与规格参数。

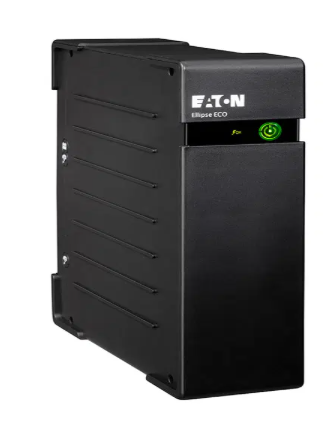

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per centcompared to previous-generation UPSs
Eaton Ellipse ECO UPS – Features
- EcoControl function helps you save up to 25% energy compared to previous generation UPSs (USB models)
- Includes a high performance surge-protection device which complies with IEC 61643-1 standard
- Up to 8 outlets to connect your PC & peripherals
- Convenient extra-flat design for easy installation in any office environment
- USB port & Power Management software for Windows 7, Vista, XP, Linux and Mac OS (USB models)
- Protects data connections such as Ethernet, internet and telephone lines
Eaton Ellipse ECO UPS - 技术指标
| 产品快照 | |
|---|---|
| 功率等级 | 500-1600VA |
| 额定电压 | 230V |
| 频率 | 50/60Hz自适应 |
| 配置 | 塔式 |
| UPS型号 | |||
|---|---|---|---|
| 零件号码 | 额定容量 | 输入连接 | 输出连接 |
| （伏安/瓦特） | |||
| Eaton Ellipse ECO IEC | |||
| 9400-43126-00P | 500 / 300 | C14 | (3) C13, (1) C13 surge only |
| 9400-43129-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-43132-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-5336-00P | 800 / 500 | C14 | (3) C13, (1) C13 surge only |
| 9400-6335-00P | 1200 / 750 | C14 | (4) C13, (4) C13 surge only |
| 9400-8309-00P | 1600 / 1000 | C14 | (4) C13, (4) C13 surge only |
| UPS型号 | |||
|---|---|---|---|
| 零件号码 | 额定容量 | 输入连接 | 输出连接 |
| （伏安/瓦特） | |||
| Eaton Ellipse ECO IEC | |||
| 9400-43126-00P | 500 / 300 | C14 | (3) C13, (1) C13 surge only |
| 9400-43129-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-43132-00P | 650 / 400 | C14 | (3) C13, (1) C13 surge only |
| 9400-5336-00P | 800 / 500 | C14 | (3) C13, (1) C13 surge only |
| 9400-6335-00P | 1200 / 750 | C14 | (4) C13, (4) C13 surge only |
| 9400-8309-00P | 1600 / 1000 | C14 | (4) C13, (4) C13 surge only |
